MARINE RADARS
DOME MODELS
DRS2D-NXT
SPECIFICATIONS
General:
- Output power: 25W
- Range Scale: 36NM
- Beam Width (Horizontal): 2.0-3.9°
- Beam Width (Vertical): 25°
Frequency:
- CH1: P0N 9380MHz / Q0N 9400MHz
- CH2: P0N 9400MHz / Q0N 9420MHz
- CH3: P0N 9420MHz / Q0N 9440MHz
Others:
- Waterproofing: IP56
- Power Supply: 12-24VDC: 2.5-1.3A
- Weight: 6.5kg
- Networking: LAN
DRS4D-NXT
SPECIFICATIONS
General:
- Output power: 25W
- Range Scale: 36NM
- Beam Width (Horizontal): 2.0-3.9°
- Beam Width (Vertical): 25°
Frequency:
- CH1: P0N 9380MHz / Q0N 9400MHz
- CH2: P0N 9400MHz / Q0N 9420MHz
- CH3: P0N 9420MHz / Q0N 9440MHz
Others:
- Waterproofing: IP56
- Power Supply: 12-24VDC: 2.5-1.3A
- Weight: 7.3kg
- Networking: LAN
DRS4DL+
SPECIFICATIONS
General:
- Output power: 4kW
- Range Scale: 96NM
- Beam Width (Horizontal): 5.2°
- Beam Width (Vertical): 22°
- Frequency: 9410MHz (⩲30MHz)
Others:
- Waterproofing: IP26
- Power Supply: 12-24VDC: 2.1-1A
- Weight: 22kg (XN10A), 25kg (XN12A), 27kg (XN13A)
- Networking: LAN
NXT SOLID-STATE MODELS

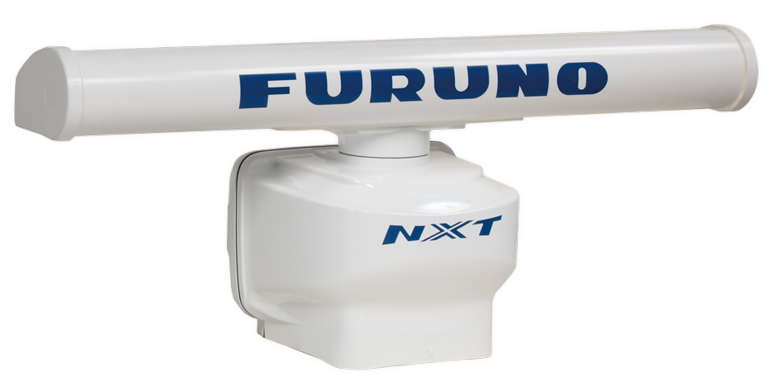

DRS6A-NXT
SPECIFICATIONS
General:
- Output power: 25W
- Range Scale: 96NM
- Beam Width (Horizontal): 1.15-2.3°(XN10A), 0.95-1.9° (XN12A), 0.7-1.35° (XN13A)
- Beam Width (Vertical): 22°
Frequency:
- CH1: P0N 9380MHz / Q0N 9400MHz
- CH2: P0N 9400MHz / Q0N 9420MHz
- CH3: P0N 9420MHz / Q0N 9440MHz
Others:
- Waterproofing: IP56
- Power Supply: 12-24VDC: 9.5-5A
- Weight: 22kg (XN10A), 25kg (XN12A), 27kg (XN13A)
- Networking: LAN
DRS25A-NXT
SPECIFICATIONS
General:
- Output power: 200W
- Range Scale: 96NM
- Beam Width (Horizontal): 1.15-2.3°(XN10A), 0.95-1.9° (XN12A), 0.7-1.35° (XN13A)
- Beam Width (Vertical): 22°
Frequency:
- CH1: P0N 9380MHz / Q0N 9400MHz
- CH2: P0N 9400MHz / Q0N 9420MHz
- CH3: P0N 9420MHz / Q0N 9440MHz
Others:
- Waterproofing: IP56
- Power Supply: 24VDC: 5.6A
- Weight: 22kg (XN10A), 25kg (XN12A), 27kg (XN13A)
- Networking: LAN
DRS12A-NXT
SPECIFICATIONS
General:
- Output power: 100W
- Range Scale: 96NM
- Beam Width (Horizontal): 1.15-2.3°(XN10A), 0.95-1.9° (XN12A), 0.7-1.35° (XN13A)
- Beam Width (Vertical): 22°
Frequency:
- CH1: P0N 9380MHz / Q0N 9400MHz
- CH2: P0N 9400MHz / Q0N 9420MHz
- CH3: P0N 9420MHz / Q0N 9440MHz
Others:
- Waterproofing: IP56
- Power Supply: 24VDC: 5A
- Weight: 22kg (XN10A), 25kg (XN12A), 27kg (XN13A)
- Networking: LAN
X-CLASS MAGNETRON MODELS
DRS6A X-CLASS
SPECIFICATIONS
General:
- Output power: 6kW
- Frequency: 9410Mhz (⩲30Mhz)
- Range Scale: 96NM
- Beam Width (Horizontal): 2.3°(XN10A), 1.9° (XN12A), 1.35° (XN13A)
- Beam Width (Vertical): 22°
Others:
- Waterproofing: IP56
- Power Supply: 24VDC: 4A
- Weight: 20kg (XN10A), 21kg (XN12A), 23kg (XN13A)
- Networking: LAN
DRS25A X-CLASS
SPECIFICATIONS
General:
- Output power: 25kW
- Frequency: 9410Mhz (⩲30Mhz)
- Range Scale: 96NM
- Beam Width (Horizontal): 2.3°(XN10A), 1.9° (XN12A), 1.35° (XN13A)
- Beam Width (Vertical): 22°
Others:
- Waterproofing: IP56
- Power Supply: 24VDC: 5.6A
- Weight: 22kg (XN12A), 24kg (XN13A)
- Networking: LAN
DRS12A X-CLASS
SPECIFICATIONS
General:
- Output power: 12kW
- Frequency: 9410Mhz (⩲30Mhz)
- Range Scale: 96NM
- Beam Width (Horizontal): 2.3°(XN10A), 1.9° (XN12A), 1.35° (XN13A)
- Beam Width (Vertical): 22°
Others:
- Waterproofing: IP56
- Power Supply: 24VDC: 4.5A
- Weight: 21kg (XN12A), 23kg (XN13A)
- Networking: LAN
COMMERCIAL
FR-10
SPECIFICATIONS
Display:
- Display Unit: 10.4″ Colour LCD
- Display Mode: Head-up, North-up, Course-up, Stern-up
- Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts
Others:
- Power Supply: 12-24VDC: 1.1 -0.6A
- Size: 315 (W) x 333 (H) x 152 (D) mm
- Weight: 3.2kg
- Networking: LAN
FAR-1523
SPECIFICATIONS
Antenna:
- Output power: 25kW
- Frequency: 9410Mhz (⩲30Mhz)
- Range Scale: 0.125 – 96NM
- Beam Width (Horizontal): 1.9° (XN12A), 1.35° (XN13A)
- Beam Width (Vertical): 20°
Display:
- Display Unit: Optional supply, 1024 x 786 (XGA)
- Display Mode: Head-up, North-up, Course-up, Stern-up
- Functions: Target Analyzer™, Fast Target Tracking™, AIS, Echo Trails
Others:
- Waterproofing: IP26 (Antenna Only)
- Power Supply: 24VDC: 5.6A
- Weight: 25kg (XN12A), 27kg (XN13A)
- Networking: LAN
FR-12
SPECIFICATIONS
Display:
- Display Unit: 12.1″ Colour LCD
- Display Mode: Head-up, North-up, Course-up, Stern-up
- Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts
Others:
- Power Supply: 12-24VDC: 1.7 -0.9A
- Size: 330 (W) x 338 (H) x 173 (D) mm
- Weight: 3.9kg
- Networking: LAN
